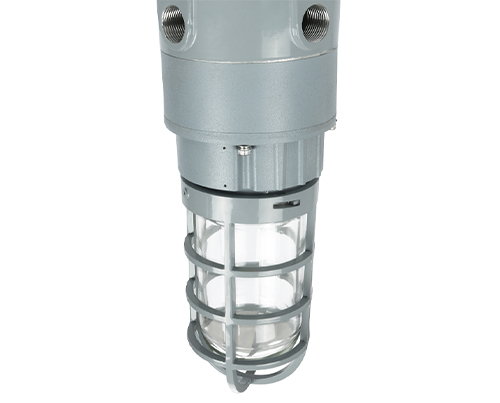

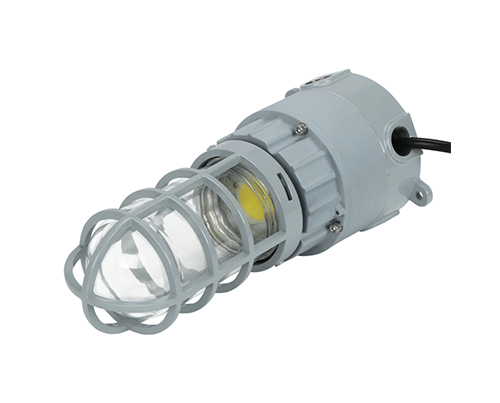

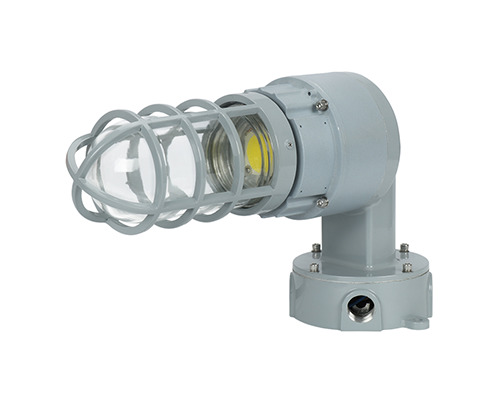

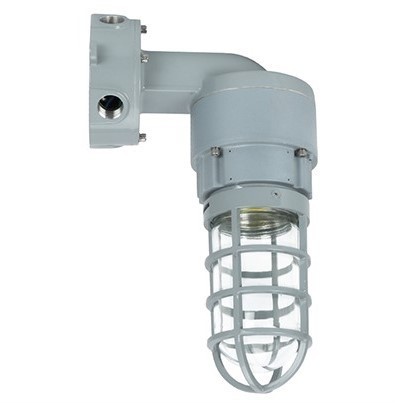

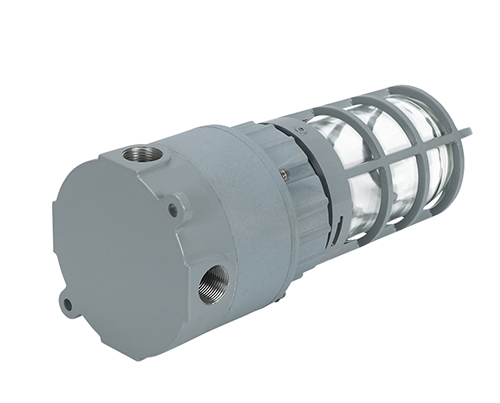

Type EX-O - Jelly Jar - Class 1, Div. 2

1. UL 844 Hazardous Locations

Class I Division 2, Groups A, B, C, D
Class II Division II, Groups F, G
Class III

UL 1598A
CSA C22.2 No. 137/No. 250.0
Marine and Wet Locations
IECEX, ATEX
NEMA 3, 4X, IP66

2. A.C.100-277V, 50-60HZ

3. Available Wattage:

10W - 1400 lumens
20W - 2800 lumens
30W - 2800 lumens

Efficacy - 140 Lumens/Watt

4. Available Beam Angle - 40, 60, 90, 120 Degrees

5000K - 80CRI Standard (Consult Factory for 3000 or 4000K)

5. Heavy-duty, corrosion resistant copper-free aluminum housing

6. Mounting: Ceiling, Wall, Pendant
