Tunnel Light TWL-HID

Housing Enclosure:

Extruded, Low Copper, corrosion resistant Aluminum alloy 6063‐T5 and clear anodized, Class 1, Type II per specification AA‐M10‐C12‐A41

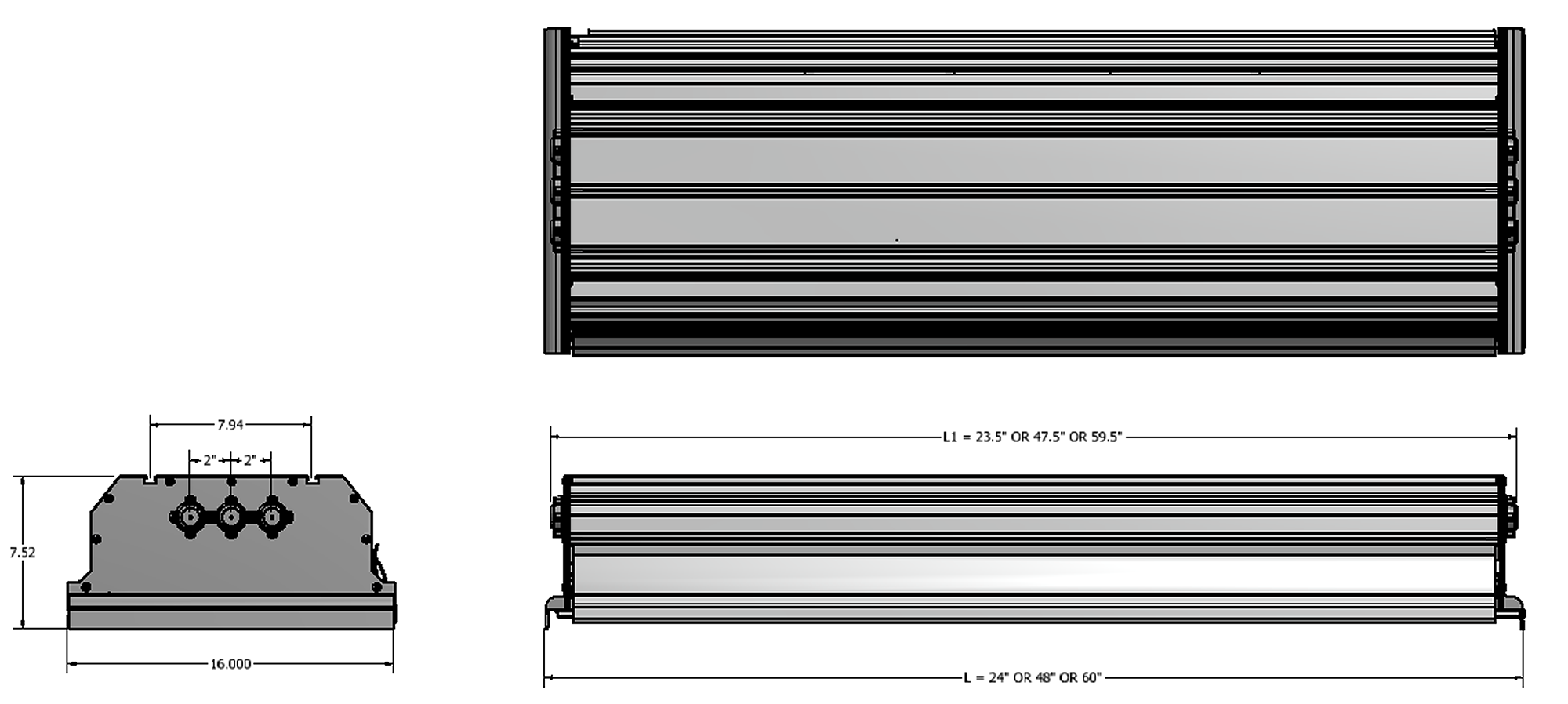

Physical Size:

Available Luminaire suitable for three lengths, 24”, 48” and 60”. The typical cross section of the luminaire shall be 16.75” x 7.50”

Available Luminaire for light Source 1 for 24” length and 2 light sources for 48” and 60” lengths.

Lamp Choices:

Available for Light Source Mogul base type Metal halide or HPS lamps Lamp envelop sizes ED23.5, ED28, ED18, BT37, T15 or equal

Maximum wattages 400W for Metal Lamps and 600W HPS (400W maximum for 24” and 48” lengths and 600W maximum for 60” length.

Optical Choices

Optical distributions choices suitable for Threshold, Transition, Interior and Exit zones for optimum performance ‐ maximum luminance, minimum Veiling glare Luminance and ultimate uniformity using fewest luminaires.

Available Counter‐Beam or Pro‐Beam optics without requiring any external shieling.

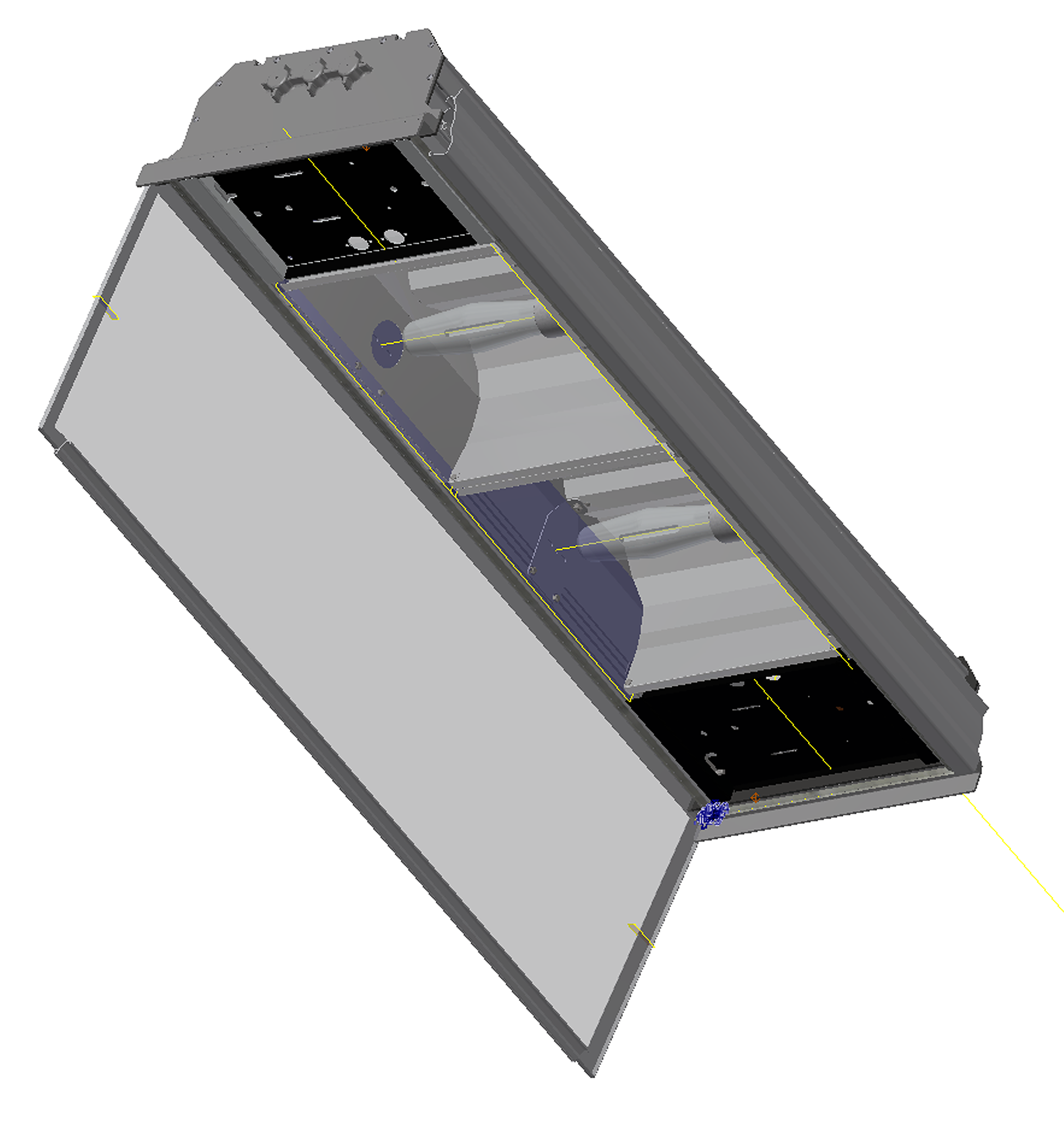

Modular optical assemblies are designed to align precisely optical axis and optical center with Lamp light center with lamp support for consistent optical performance for the all luminaires.
