Lytescaper LSP1

Construction

• Housing is die-cast aluminum, heavy duty, structurally rigid and heat dissipating for longer lumen maintenance life-hours. Housing is finished fine texture metallic gray using polyester powder coat. Other optional finishes are available.
• Lens Door Assembly Minimum 1/8” thick tempered glass lens, thermal and impact resistant, sealed with doorframe and housing using extruded, memory retentive gasket. The doorframe is die-cast aluminum.

Optical System

• Largest selection of optical choices shall be available to fit your applications. Please specify your selection from the ordering guide. Photometric Application Data table is provided additional tool for selecting appropriate optic system suitable to the application.

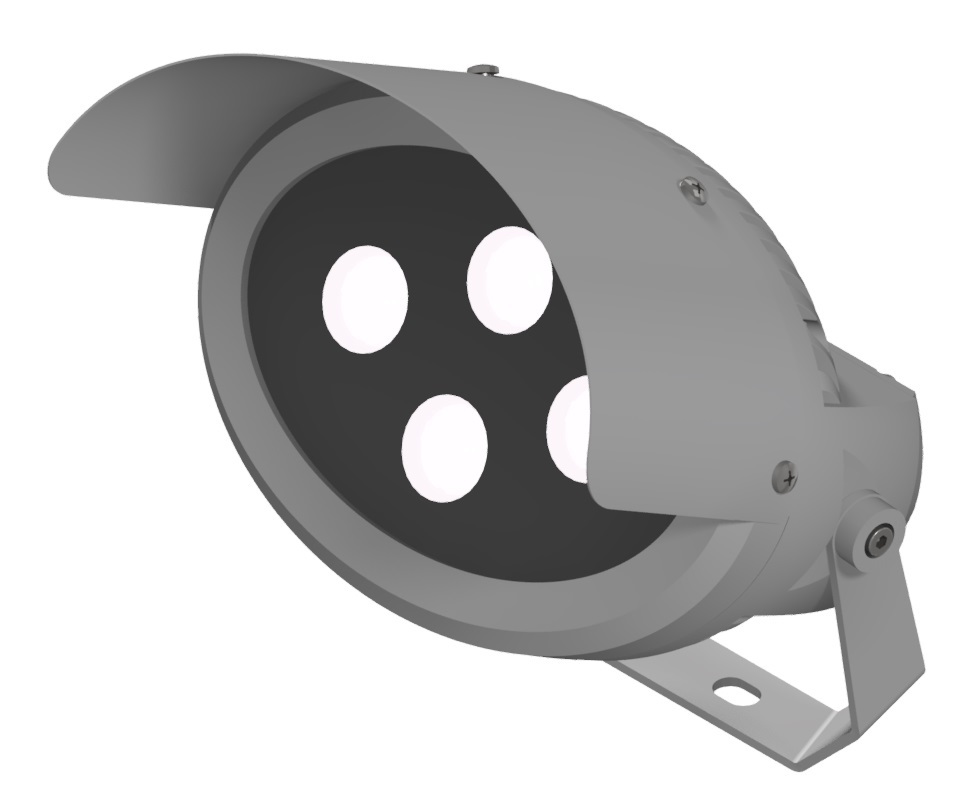

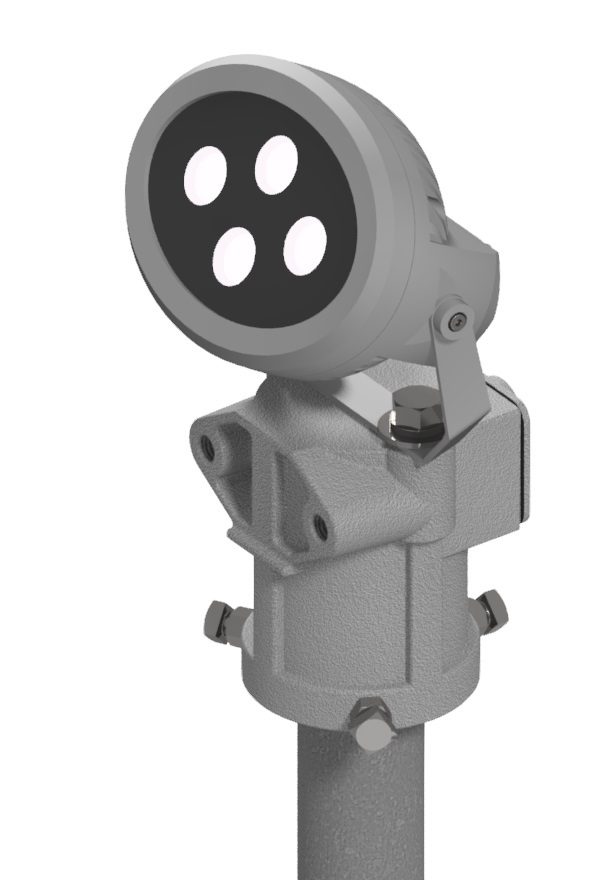

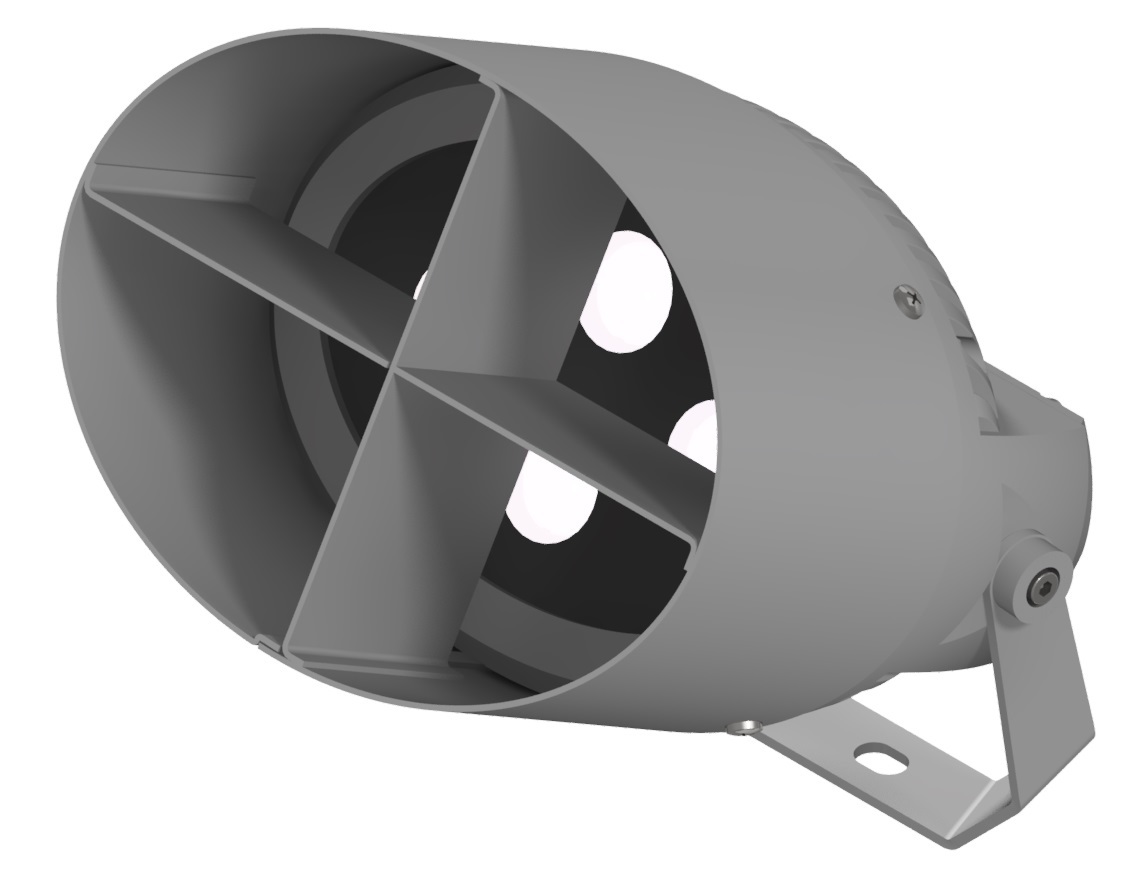

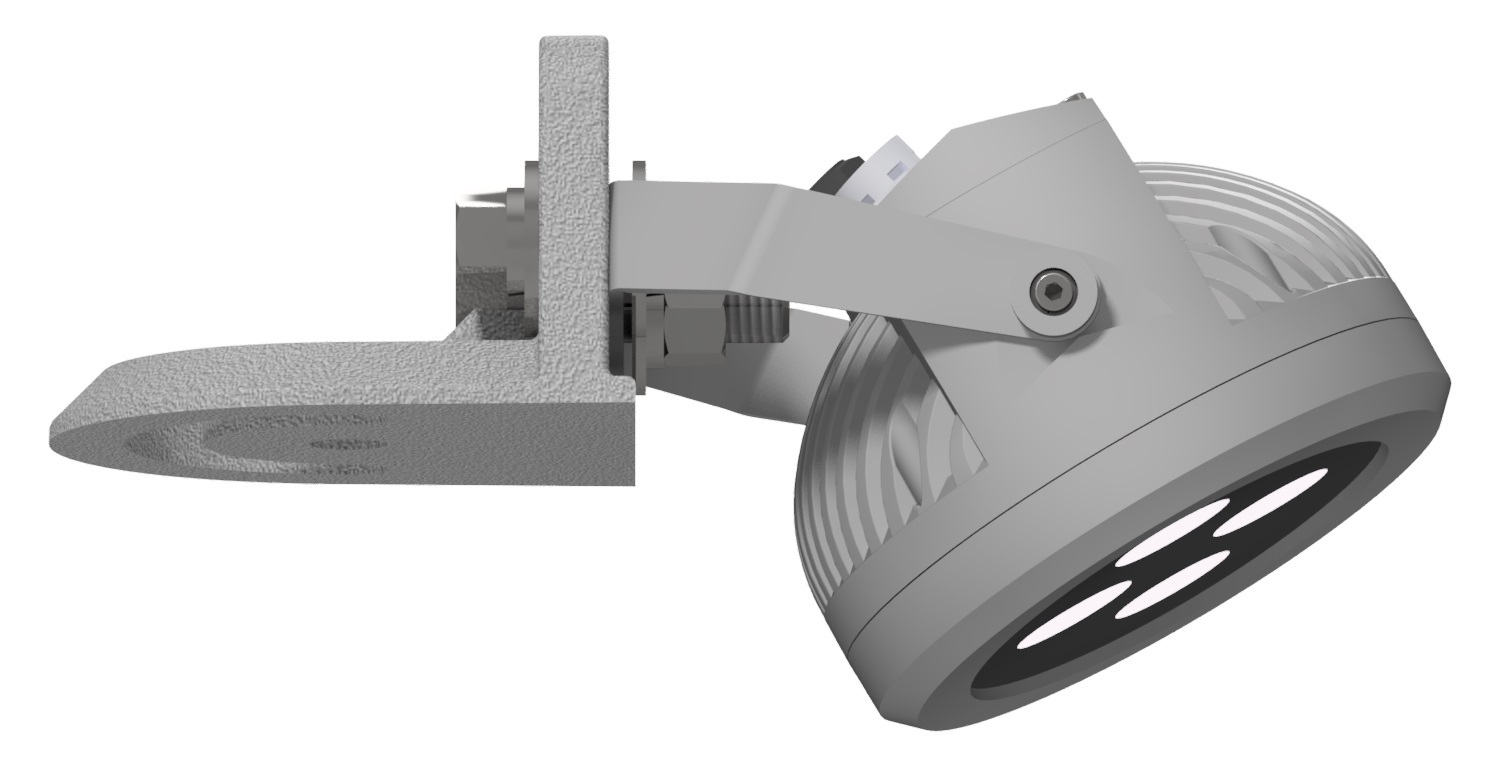

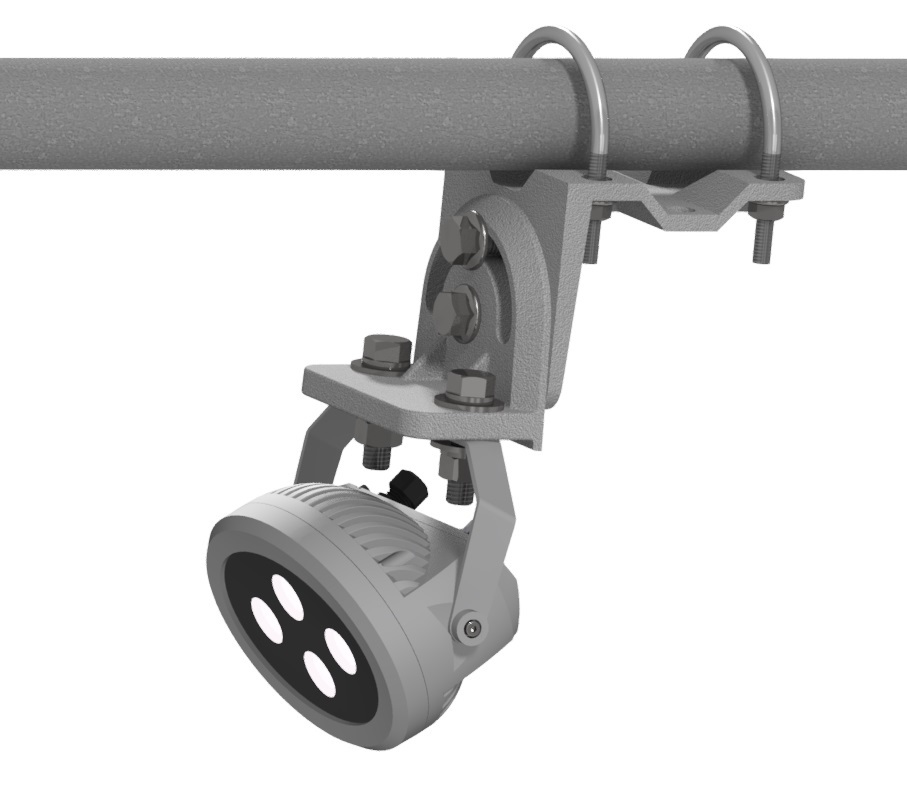

• Glare Control: Choice of external glare control accessories are available. Please select from the catalog ordering guide. Mounting: Adjustable aim and lock type yoke is provided to mount on horizontal or vertical surface depending on application. The yoke is made of steel and finished powder coat to match luminaire finish.
