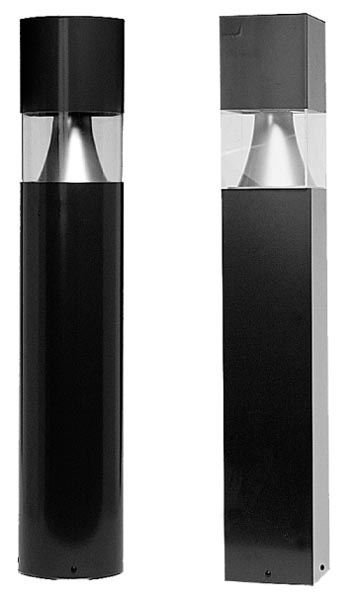

Bollards (BLS, BLR) White LED

​Model #: BLR/BLS

Lumen Output: 3415 lumens (5K)

Lumens / Watt: 88

Input Watts: 39W

CCT: 27K, 3K, 4K, 5K

CRI: 80+ Standard (90+ Optional)

Type V Round Distribution

Dimension (mm): 6-3/4” Square x 42” Tall

Bollard Specifications

Bollards combine architectural design and contemporary styling. Suitable for walkways and commercial areas where low mounting fixtures are required. Available for LED 25W (1350 output lumens) and 40W (2400 output lumens) daylight white (6000K). Luminaire shall be completely pre-wired for ease of installation.

Construction

One-piece extruded aluminum 8” diameter (round) or 6-3/4” (square) secured to a cast aluminum mounting base with four tamper resistant screws. Installation by using four 9 inch anchor bolts, leveling nuts and washers. The Bollard is finished in all weather bronze polyester powder coating (other finishes are available). A 1/4” thick acrylic diffuser is sealed to the post with a full EDPM gasket, sealing out moisture and dust. Easy component and lamp access is provided by removing 2 tamper resistant screws on top of the cap. All ballast components are mounted within easy reach.

Electrical Specifications

AlphaLED Engines: Four AL1 (for 25W version) or four AL2 (40W version) operating below 85° junction temperature delivering maintained illumination to meet LM80 L70 lumen maintenance for greater than 5-years illumination life.

LED Drivers: UL/CSA recognized component to meet UL1310 Class2; CAN/CSA C22.2 No. 223-M91. Suitable for input power at 120-277VAC 50/60Hz.
